Hydraulic Decoilers

We design and produce hydraulic decoilers, e.g. decoilers with hydraulic expanding system. There are different models of hydraulic decoiler machines to carry 6 ton to 20 ton coil. The thickness of coil material can be between 0,5 – 6,0 mm.

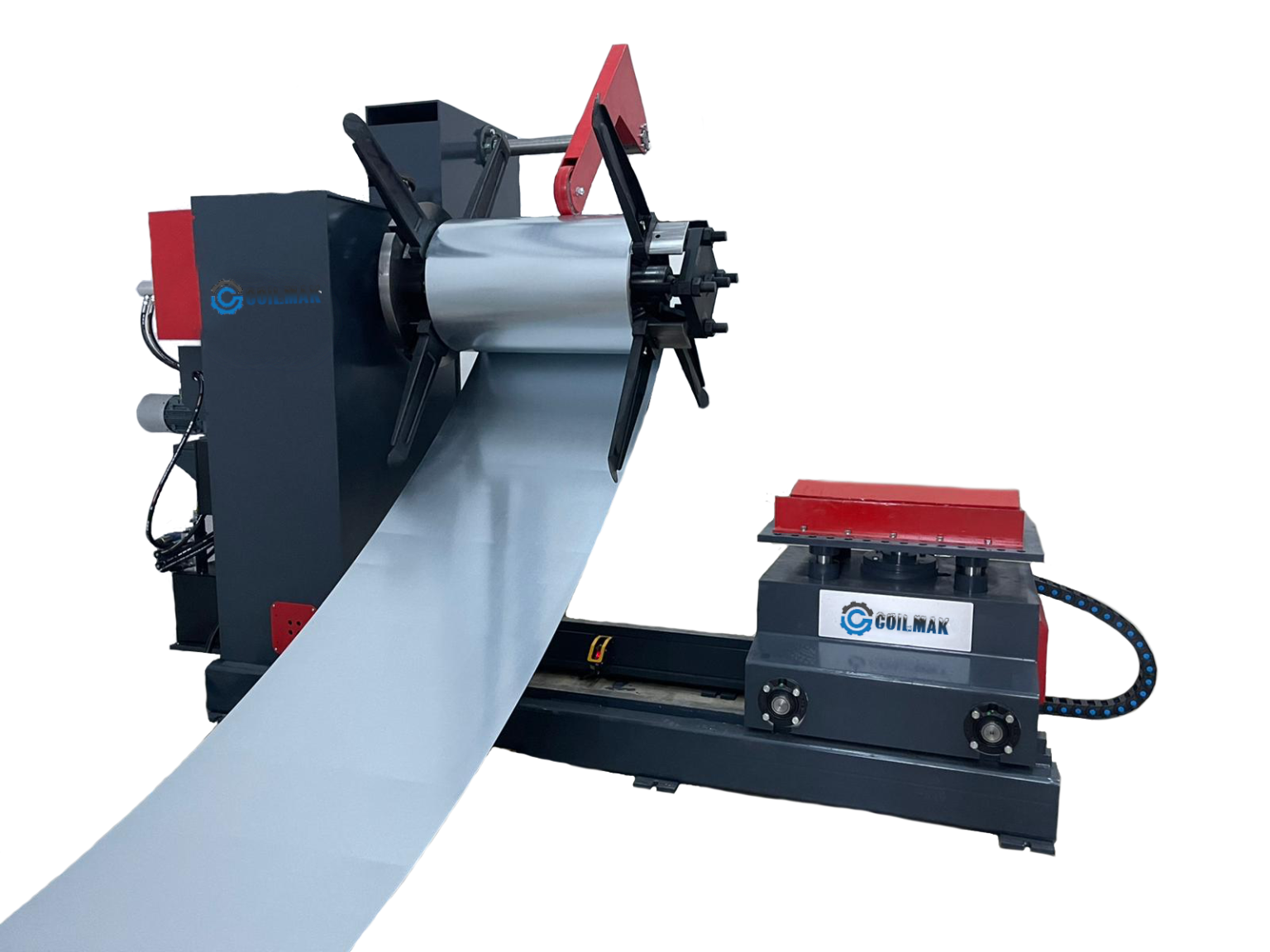

After loading the coil onto the decoiler machine, decoiler is expanding the mandrel in order to fix the coil. Mechanical Decoilers have manual or mechanical expansion system. Therefore, these type of uncoilers are proper for the smaller coil weights. On the other hand, hydraulic uncoilers are fixing the coil with hydraulic expanding system. We use Bosch Rexroth brand as a supplier of hydraulic equipment.

Our standard hydraulic uncoiler models are: 6 ton decoiler, 8 ton decoiler, 10 ton decoiler, 12 ton decoiler, 15 ton decoiler and 20 ton decoiler. Alternatively, we can provide custom design decoilers, according to customer requirements.

Coil Loading Cars

It is difficult and unsafe to load and unload the heavy coils during the production. For this reason, we provide coil loading device for loading and unloading of the coil in automatic way. The coil loading cart is driven by hydraulic system. The device is working on the railway. Additionally, the coil loading car has a special fixture to prevent tilting of the coil.

Our Hydraulic Decoiler Models

6 ton Hydraulic Decoiler

6 ton Hydraulic Decoiler is appropriate for the coil with the width of 80-1000 mm. Maximum outer diameter of the coil is 1600 mm. However, inner diameter of the coil is 450-560 mm.

We can supply motorized and non motorized 6 ton Decoilers. Hold down arm is optional feature for the decoilers. Furthermore, coil hold down arms can have motorized end wheels. Additionally, 6 ton Hydraulic Uncoilers can be equipped with brake system. The automatic back-tension system is also the optional feature of the decoilers.

8 ton Hydraulic Decoiler

8 ton Hydraulic Decoiler is appropriate for the coil with the width of 80-1200 mm. Maximum outer diameter of the coil is 1600 mm. However, inner diameter of the coil is 450-560 mm.

We can supply motorized and non motorized 8 ton Decoilers. Hold down arm is optional feature for the decoilers. Furthermore, coil hold down arms can have motorized end wheels. Additionally, 8 ton Hydraulic Uncoilers can be equipped with brake system. The automatic back-tension system is also the optional feature of the decoilers.

10 ton Hydraulic Decoiler

10 ton Hydraulic Decoiler is appropriate for the coil with the width of 80-1300 mm. Maximum outer diameter of the coil is 1600 mm. However, inner diameter of the coil is 450-560 mm.

We can supply motorized and non motorized 10 ton Decoilers. Hold down arm is optional feature for the decoilers. Furthermore, coil hold down arms can have motorized end wheels. Additionally, 10 ton Hydraulic Uncoilers can be equipped with brake system. The automatic back-tension system is also the optional feature of the decoilers.

12 ton Hydraulic Decoiler

12 ton Hydraulic Decoiler is appropriate for the coil with the width of 80-1300 mm. Maximum outer diameter of the coil is 1600 mm. However, inner diameter of the coil is 450-560 mm.

We can supply motorized and non motorized 12 ton Decoilers. Hold down arm is optional feature for the decoilers. Furthermore, coil hold down arms can have motorized end wheels. Additionally, 12 ton Hydraulic Uncoilers can be equipped with brake system. The automatic back-tension system is also the optional feature of the decoilers.

15 ton Hydraulic Decoiler

15 ton Hydraulic Decoiler is appropriate for the coil with the width of 80-1500 mm. Maximum outer diameter of the coil is 1600 mm. However, inner diameter of the coil is 450-560 mm.

We can supply motorized and non motorized 15 ton Decoilers. Hold down arm is optional feature for the decoilers. Furthermore, coil hold down arms can have motorized end wheels. Additionally, 15 ton Hydraulic Uncoilers can be equipped with brake system. The automatic back-tension system is also the optional feature of the decoilers.

20 ton Hydraulic Decoiler

20 ton Hydraulic Decoiler is appropriate for the coil with the width of 80-1600 mm. Maximum outer diameter of the coil is 1600 mm. However, inner diameter of the coil is 450-560 mm.

We can supply motorized and non motorized 20 ton Decoilers. Hold down arm is optional feature for the decoilers. Furthermore, coil hold down arms can have motorized end wheels. Additionally, 20 ton Hydraulic Uncoilers can be equipped with brake system. The automatic back-tension system is also the optional feature of the decoilers.
